Name: Yamaha MS101-4 Powered Monitor Speaker - theaudiogear.com
Price: 12300.00 INR
Availability: InStock

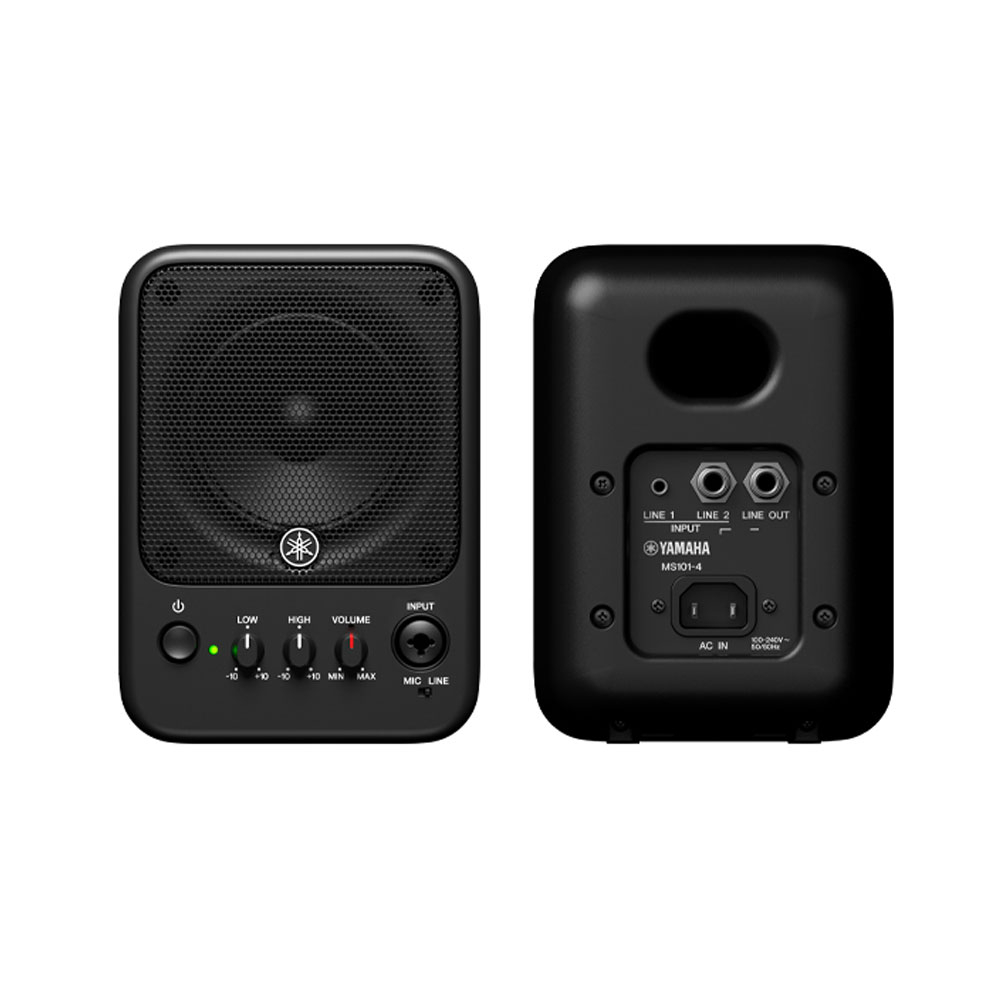

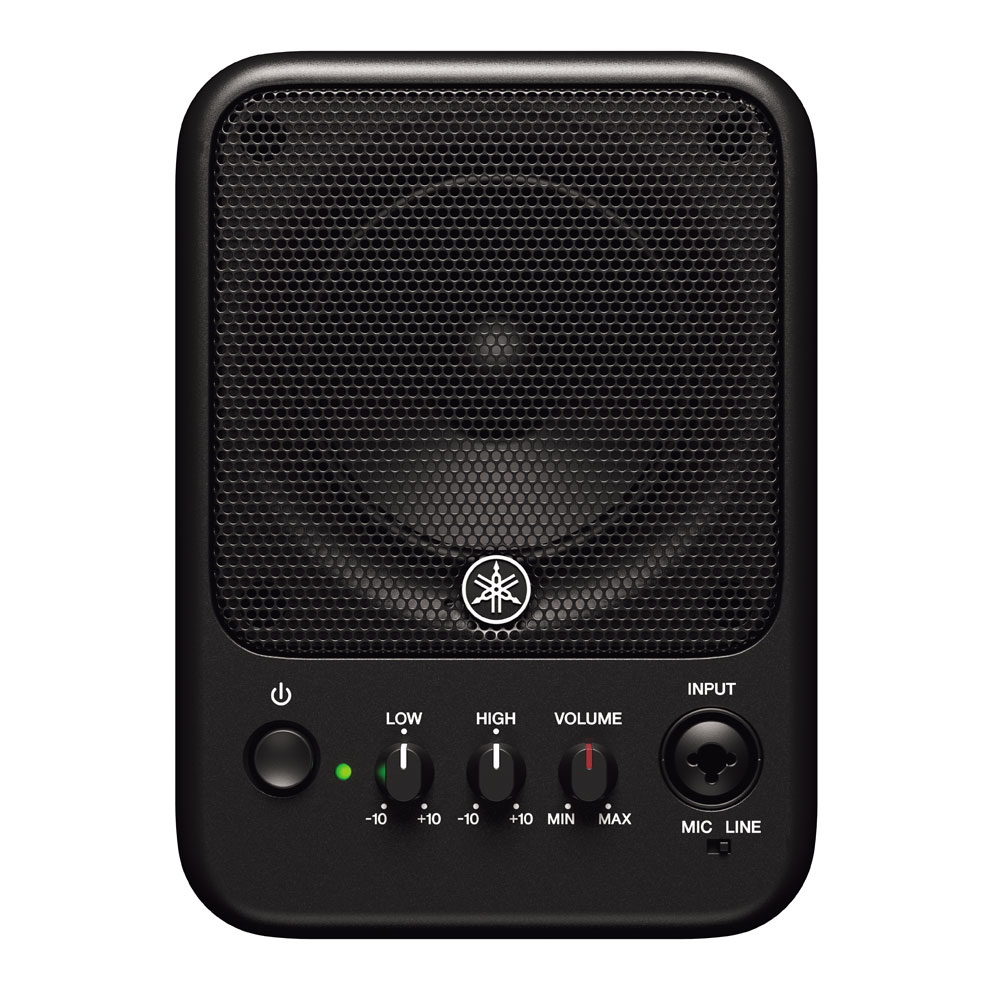

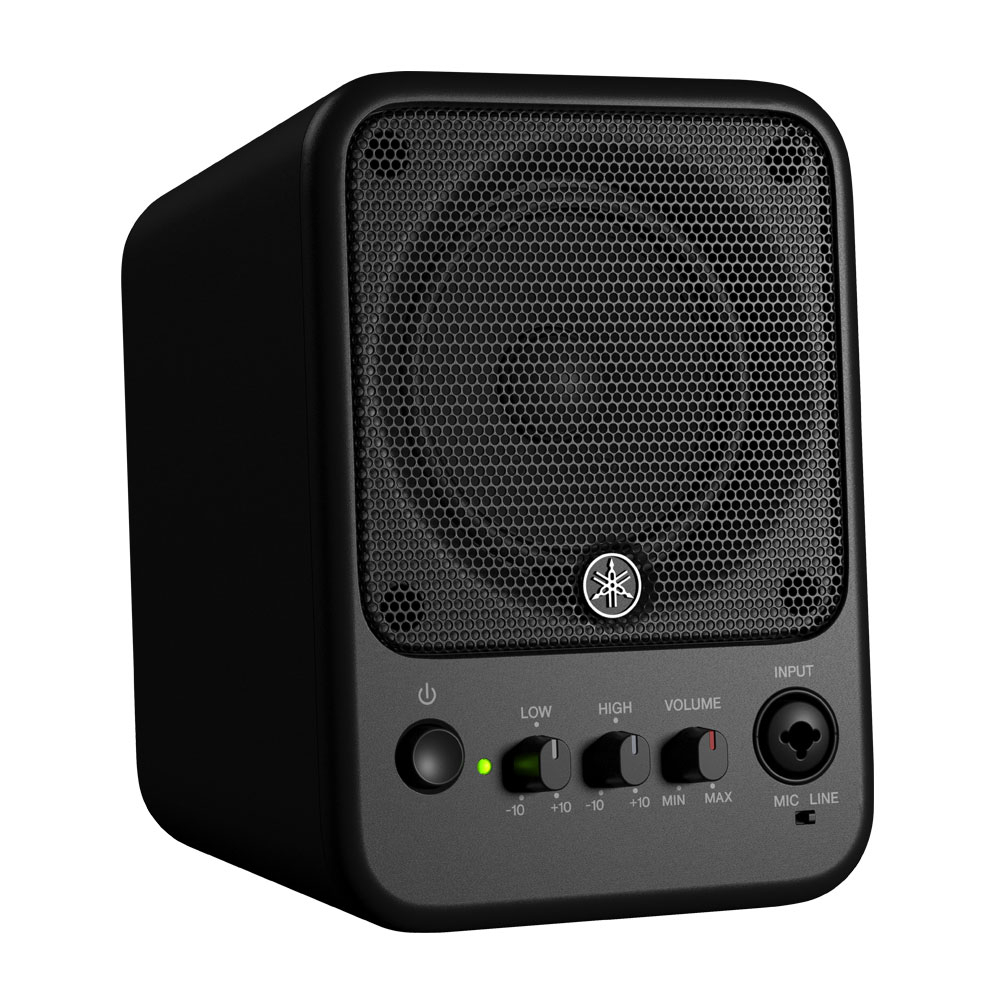

Yamaha MS101-4 Powered Monitor Speaker

30W of amplifier power provides clean, high output sound.
Redesigned enclosure for an even lower profile.
Combo Input jack accepts both XLR and 1/4″ connectors.
Directly mountable on Euro microphone stands (Optional mic stand adaptor BMS-10A is available for adjusting tilt angle)

3 Items sold in last 3 minutes

10 People watching this product now!

MS101-4
General specifications
Speaker type		Full range Powered Speaker, Bass-reflex Type
Frequency range (-10dB)		77 Hz–20 kHz
Maximum output level (1m; on axis)		115 dB SPL *1
Components	LF-HF	4″ Cone, 1″ Voice coil, Ferrite magnet
Dimensions	W	142 mm
	H	196 mm
	D	187 mm
Net weight		2.1 kg (4.6 lbs)
Flying and mounting hardware		Screw threads (bottom): 2 x M5 depth 11 mm pitch 60 mm (for 2, M5 x 6-10 mm screws), 1 x 3/8″ depth 12 mm (for 1 x 3/8″ x 9-11 mm screw)
Amplifier class		Class-D
Power rating	Dynamic	30 W
Power rating	Continuous	20 W
Cooling		Natural cooling (no fan)
I/O Connectors	Mic Input	[Front] INPUT: Combo, [Rear] INPUT LINE 1: Stereo Mini, INPUT LINE 2: Phone (TRS)
	Line Out	1 x Phone (TRS)
	AC	1 x AC inlet
Input impedance		[Front] INPUT: LINE=5.4 kΩ / MIC= 5.4 kΩ, [Rear] INPUT LINE 1,2: 10 kΩ
Input sensitivity		[Front] INPUT: LINE=-10 dBu / MIC=-40 dBu, [Rear] INPUT LINE 1, 2: -10 dBu (VOLUME: Maximum)
Input Level		[Front] INPUT: LINE=+5 dBu / MIC=-25 dBu, [Rear] INPUT LINE 1, 2: +5 dBu (Nominal Input Level / VOLUME: Center), [Front] INPUT: LINE=+20 dBu / MIC=-10 dBu, [Rear] INPUT LINE 1, 2: +20 dBu (Maximum Input Level)
Others		Controls: 1 x VOLUME, 1 x LOW CONTROL, 1 x HIGH CONTROL, POWER
Indicators		POWER (Green LED)
Power consumption		1/8 Power Consumption: 10 W, Idle Power Consumption: 3 W
Power requirements		100 V – 240 V, 50/60 Hz
Options		Mic stand adaptor BMS-10A, Free-angle clamp BAS-10, Wall mounting bracket BWS20-190, Ceiling bracket BCS20-150 / BCS20-210

*1: Measured peak SPL with pink noise @1m.

Country of origin: China

-6%

Original price was: ₹13,100.00.Current price is: ₹12,300.00.

Categories: Studio Gears, Studio monitors

Description

MS101-4
General specifications
Speaker type		Full range Powered Speaker, Bass-reflex Type
Frequency range (-10dB)		77 Hz–20 kHz
Maximum output level (1m; on axis)		115 dB SPL *1
Components	LF-HF	4″ Cone, 1″ Voice coil, Ferrite magnet
Dimensions	W	142 mm
	H	196 mm
	D	187 mm
Net weight		2.1 kg (4.6 lbs)
Flying and mounting hardware		Screw threads (bottom): 2 x M5 depth 11 mm pitch 60 mm (for 2, M5 x 6-10 mm screws), 1 x 3/8″ depth 12 mm (for 1 x 3/8″ x 9-11 mm screw)
Amplifier class		Class-D
Power rating	Dynamic	30 W
Power rating	Continuous	20 W
Cooling		Natural cooling (no fan)
I/O Connectors	Mic Input	[Front] INPUT: Combo, [Rear] INPUT LINE 1: Stereo Mini, INPUT LINE 2: Phone (TRS)
	Line Out	1 x Phone (TRS)
	AC	1 x AC inlet
Input impedance		[Front] INPUT: LINE=5.4 kΩ / MIC= 5.4 kΩ, [Rear] INPUT LINE 1,2: 10 kΩ
Input sensitivity		[Front] INPUT: LINE=-10 dBu / MIC=-40 dBu, [Rear] INPUT LINE 1, 2: -10 dBu (VOLUME: Maximum)
Input Level		[Front] INPUT: LINE=+5 dBu / MIC=-25 dBu, [Rear] INPUT LINE 1, 2: +5 dBu (Nominal Input Level / VOLUME: Center), [Front] INPUT: LINE=+20 dBu / MIC=-10 dBu, [Rear] INPUT LINE 1, 2: +20 dBu (Maximum Input Level)
Others		Controls: 1 x VOLUME, 1 x LOW CONTROL, 1 x HIGH CONTROL, POWER
Indicators		POWER (Green LED)
Power consumption		1/8 Power Consumption: 10 W, Idle Power Consumption: 3 W
Power requirements		100 V – 240 V, 50/60 Hz
Options		Mic stand adaptor BMS-10A, Free-angle clamp BAS-10, Wall mounting bracket BWS20-190, Ceiling bracket BCS20-150 / BCS20-210
