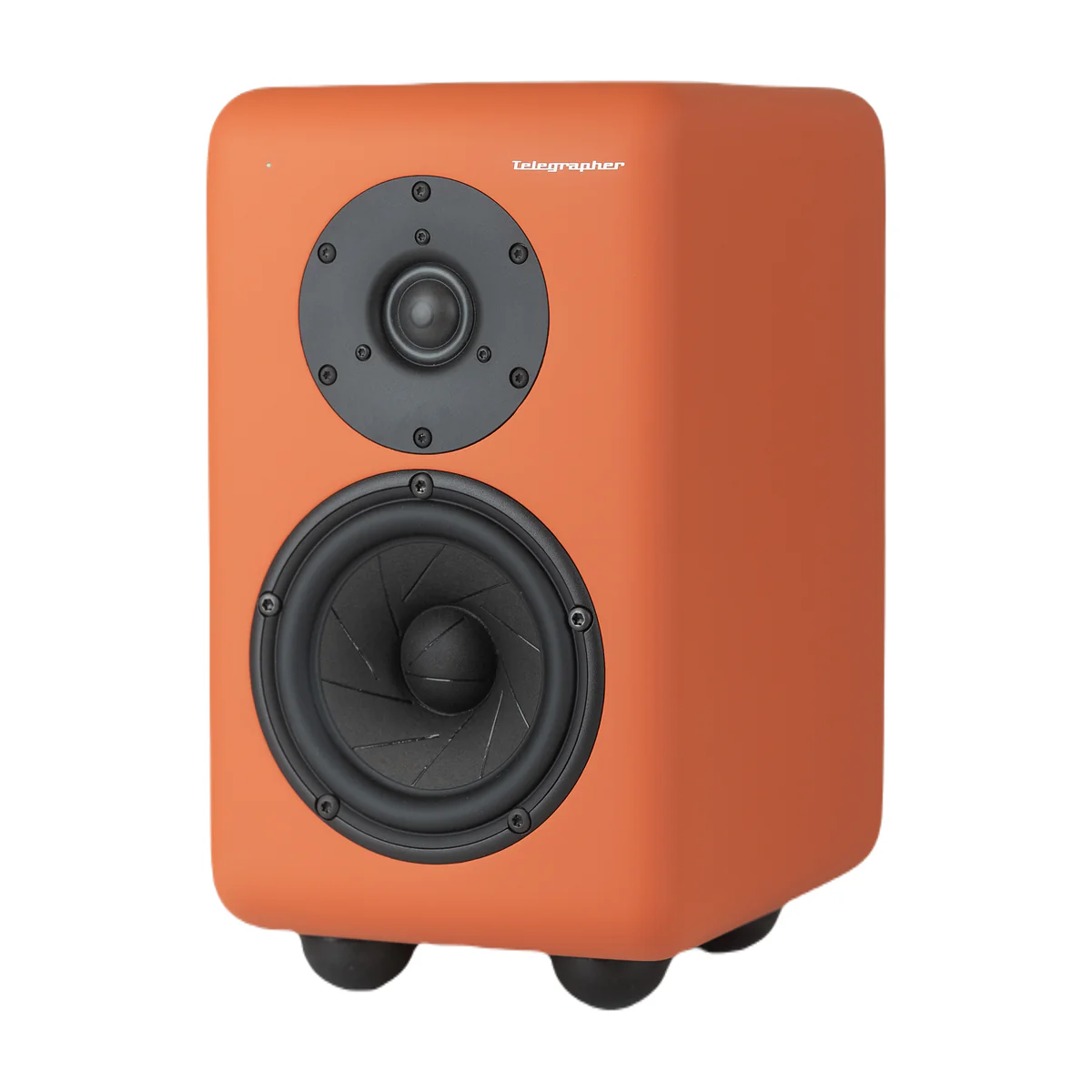

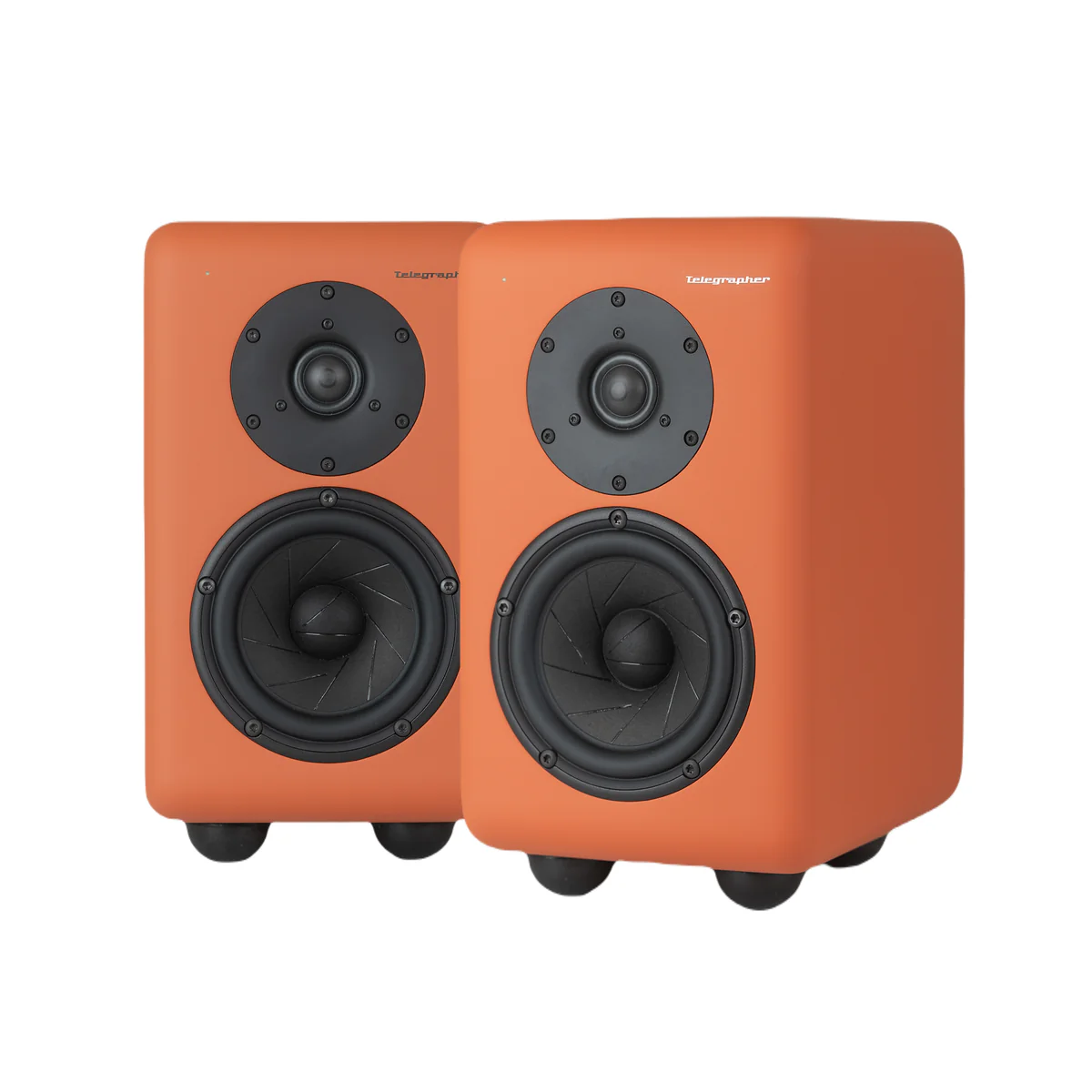

Telegrapher FOX Studio Monitor
The Telegrapher FOX Studio Monitor is a compact, active, two-way nearfield monitor designed for exceptional accuracy in detailed mixing and powerful low-end delivery. It is ideal for professional audio applications.
Exceptional Audio Quality
FOX offers rich, organic analogue warmth. It is driven by dedicated drivers with built-in amplifiers and a sealed enclosure for clean, precise sound with exceptional transient response. Despite its small size, FOX is ideal for critical listening and mixing in smaller studio environments, professional home studios, Dolby Atmos installations, and more.
Features and Design
FOX’s dedicated drivers accurately reproduce mid- and high-frequency sounds, ensuring detailed and coherent reproduction across the audio spectrum. Each driver features a built-in amplifier calibrated to the driver’s frequency range for enhanced efficiency and superior control over audio output.
The sealed enclosure provides impressive transient response and minimal phase distortion, resulting in a clean, accurate sound ideal for critical listening and detailed audio work. This design also delivers tight, precise bass and a balanced soundstage, essential for accurate spatial imaging and depth perception in audio mixes.
FOX’s all-analogue design ensures warm, rich sound, preserving the natural qualities of audio for a musical and engaging listening experience.
Colour Options
FOX is available in five beautiful colours, featuring a premium, soft-touch, silky matte finish:
- Crow Black
- Telegrapher Gray
- Jaipur Orange
- Menton Yellow
- Trooper White
-
Frequency Response: 45 – 20 Khz
-
f3: 76.5 Hz
-
f6: 59.8 Hz
-
Enclosure type: Sealed
-
Crossover type: Active, Analog
-
Peak SPL: 97.2 dB (@ 1 meter)
-
Max SPL (Momenteraly): 103.2 dBc
-
Amplifiers: 2 per speaker
-
Amplifier Type: Class D
-
Amplifier Power: 2 x 125 W
-
Amplifier THD + N: %0.001

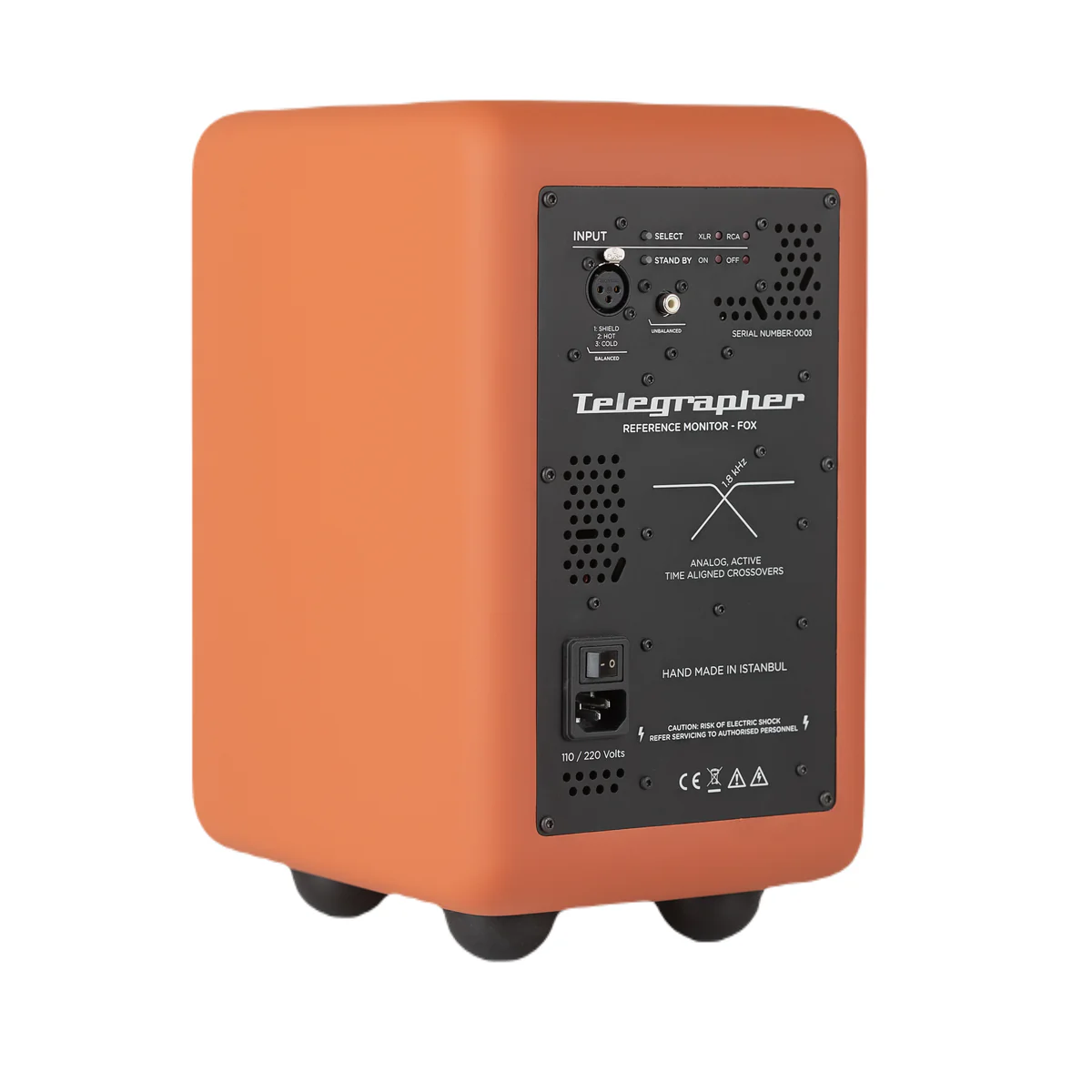

- Input: Balanced (Analog) XLR or Unbalanced (Analog) RCA
- Number of drivers: 2 way
- Woofer: 15 cm / 5.5” – Coated Paper Cone
- Tweeter: 2.5 cm / 1” – Coated Textile Diaphragm
- Safety: Shutdowns and LED Alerts*
- Weight: 9 Kg
- Dimensions: 33 x 20 x 25.7 cm (HxWxD)
- Carrying Box: One box per speaker
- Power Rating Max: 350 Watts
- Power Rating RMS: 180 Watts
- Min Voltage: 110-120 Volts AC +-%10
- Max Voltage: 200-240 Volts AC +-%10
- Voltage Frequency: 47-63 Hz
- AC Connector: 3-pin IEC 250 Volts AC, 10A Male
- Stand By: User controllable (On 120 min / Off)
* Amplifiers automatically shut down in response to electrical failures, high-frequency signals, or overheating, signaled by a red LED. A white LED indicates normal operation, and red flashing warns of audio clipping. Continuous clipping triggers a protective shutdown.
