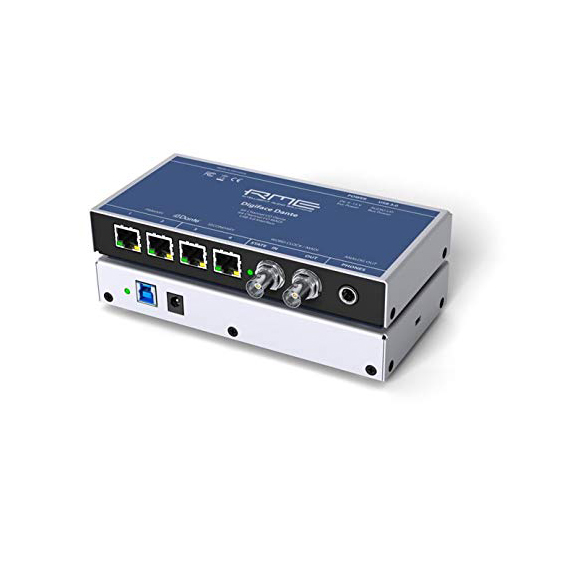

RME Audio Interface (DIGIFACE DANTE)

Dante is an audio over IP protocol by Audinate. The Digiface Dante is a USB 3.0 from/to Dante interface, adding an external and fully mobile option to the internally used Dante PCIe card. Digiface Dante uses RME’s matured MADIface Series driver for Windows and macOS, with lowest latency and industry leading stability. Equipped with the latest TotalMix FX it can not only route, but also mix as many independent submixes as outputs are available. The included high quality phones output offers a quick listen to any audio channel, but can also be used as line output to provide an additional analog stereo mixdown. Equipped with the largest Dante module 64 channel can be send and received via network.

RME made the two BNC sockets for word clock I/O switchable to MADI I/O, with up to 64 channels. The total sum of Dante and MADI, 128 channels, are transferred via USB 3.0 and handled via both Dante control software and RME’s TotalMix FX, for full and struggle-free control of all audio.

Explore new Ways to transport Audio

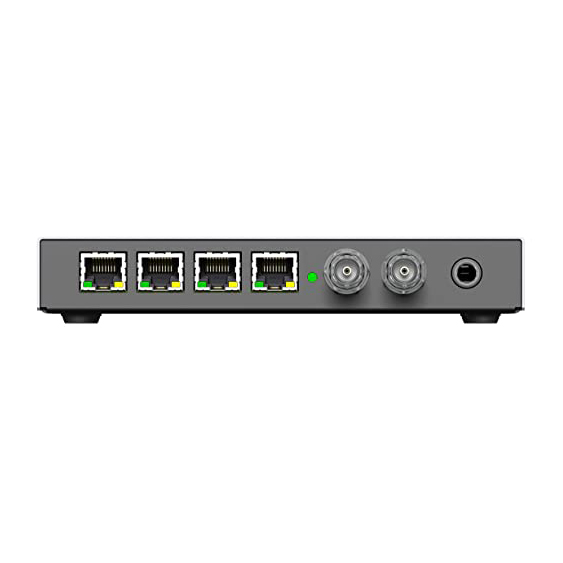

Equipped with two banks of redundant network ports, the Digiface Dante is more than just an audio interface. It also offers the functionality of a switch, connecting up to 4 network lines, removing the need for further switches to distribute and collect network lines, or offers redundancy operation with 2-port connectivity for both the primary and secondary network.

Used without USB the Digiface Dante automatically turns into a 64-channel Dante / MADI converter. The analog stereo output can be preconfigured to send out a mix of exactly those channels that are needed. Full network redundancy and switch functionality are also available. With USB bus power operation and an external power supply connection a stable and redundant power supply is ensured. As Dante has become AES67 compatible, the Digiface Dante supports another format on the network side for even greater flexibility and more applications.
