A legend Reborn

Ultra-low latency operation with USB or FireWire, combined with the legendary RME driver stability and maintenance. Active jitter suppression, individually switchable reference levels for all inputs and outputs, full stand-alone functionality, RME’s unique DIGICheck metering and analysis toolbox, and identical operation on Windows PC and Mac.

TotalMix FX, RME’s digital high-end mixer and signal router, driven by two powerful DSPs, with integrated EQ, Dynamics and Reverb/Echo effects at up to 192 kHz, plus a built-in monitoring controller.

The full-blown feature set also includes optional Class Compliant mode and operation with TotalMix FX for iPad, RME’s app to fully control the 802 from the iPad, without any computer. The easy to use app includes metering for all 90 channels plus effects bus, different setup screens, and complete control of all features.

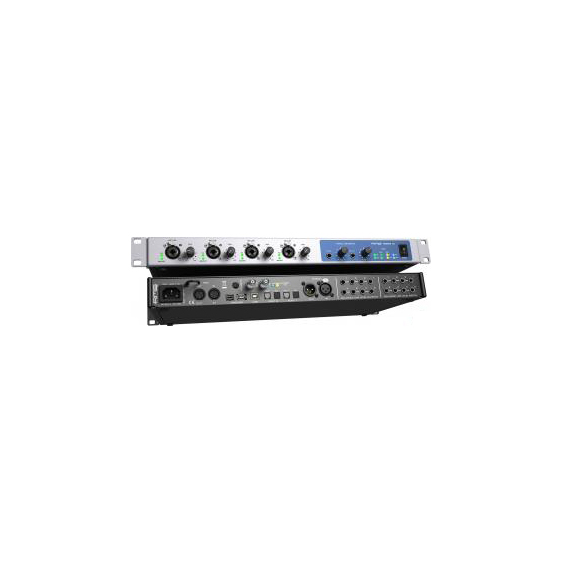

The Fireface 802 is a highly integrated pro audio solution, a full-blown studio, all within a 19” enclosure. An interface designed for users who don’t want to make compromises in sound, stability and ultra-low latency operation, and who long for an unrivaled professional feature set. Once again a milestone interface from RME, including the best of the best and even a bit more.

Inputs and Outputs

The Fireface 802 provides 60 channels of audio: 30 input and 30 output channels. All inputs and outputs can be used at the same time. Up to 12 analog and 18 digital channels can be recorded onto 30 tracks separately.

ANALOG I/O

The Fireface 802 has 12 analog I/Os.

12 INPUTS

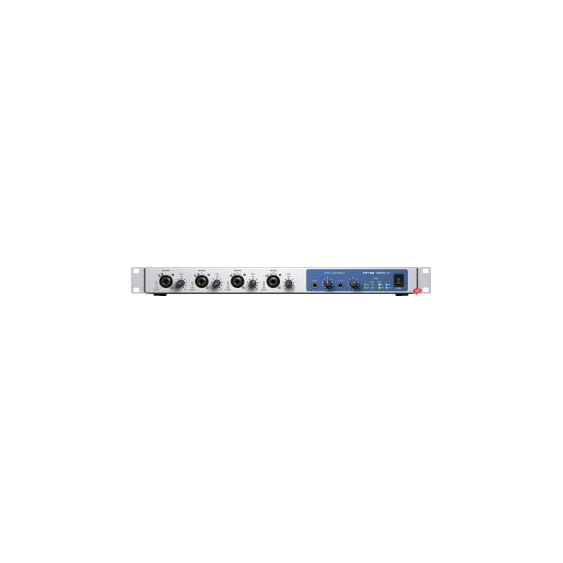

8 balanced TRS on the back and 4 XLR inputs with Mic/Instrument preamps on the front.

12 OUTPUTS

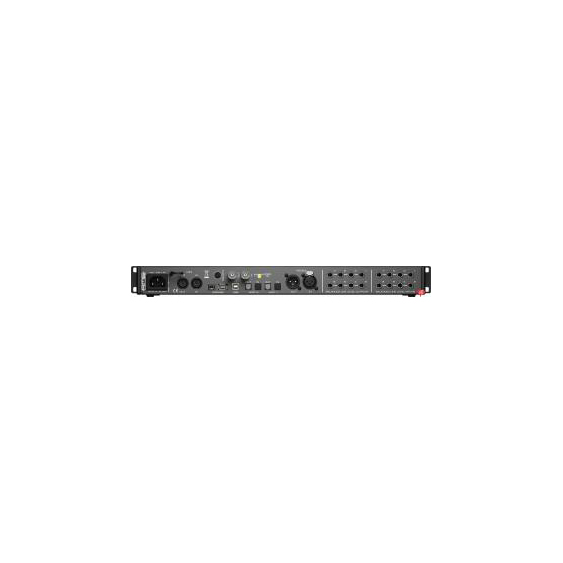

On the rear: 8 balanced TRS. On the front: Two hi-power TRS stereo phones outputs provide high volumes even with hi-impedance headphones (playback channels 9/10 and 11/12). 132750
