YAMAHA CBR15 15-INCH 2-WAY PASSIVE LOUDSPEAKER

The CBR15 provides the lowest frequency in its lineup, delivering outstanding performance for the front-of-house sound for live performance, DJ events or for installation situations that require highly prominent low and high SPL.

Custom Designed Transducers and Wide-Dispersion Constant Directivity Horn for Powerful High-Definition Sound

CBR Series speakers come equipped with carefully selected and customized transducers that feature a highly responsive woofer and a precise 2.5” compression driver (CBR15) or 2”compression driver (CBR10 and CBR12), ensuring consistent high-definition sound with minimal distortion even at high output levels. Additionally, a newly designed wide-dispersion constant directivity horn minimizes the radiation pattern deterioration in oblique directions that more conventional horns are prone to, allowing sound to expand in a more rectangular pattern, evenly dispersing wide-frequency sound to the outer-most edges of the coverage area.

HF Protection and Highly Responsive LF Unit for Reliable Performance at Any Output Level

Have you ever blown your speakers by cranking up the output levels beyond your speakers capabilities? CBR Series speakers employ a protection function that limits excessive input to the HF unit. This valuable protection circuit affords you worry-free operation of your speakers when you need them most. Combined with a highly responsive LF unit, CBR Series speakers reliably deliver clear, precise sound at any output level.

Rugged, Highly Portable Enclosure Design

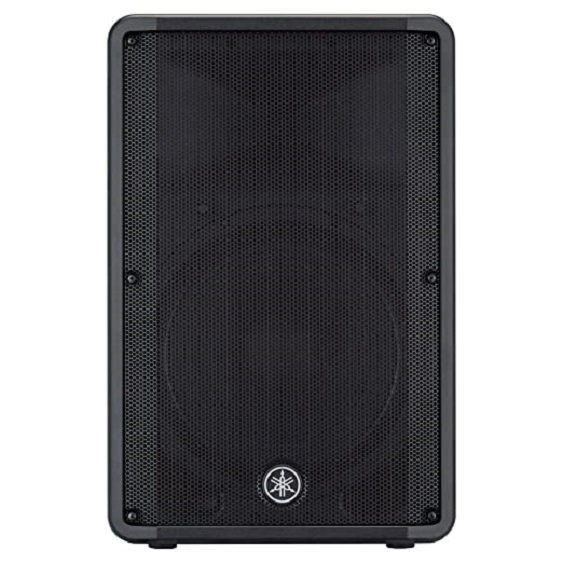

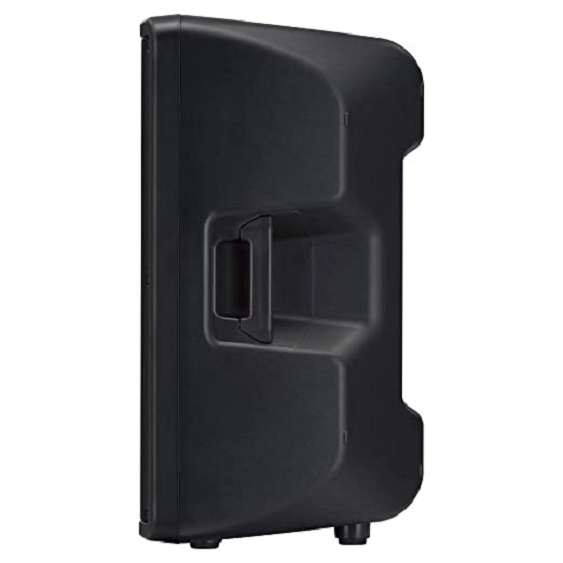

CBR Series speakers feature a very compact, durable, and lightweight plastic cabinet equipped with newly designed, ergonomic handles that greatly minimize system transport and setup. In addition, all CBR models feature a sleek, steel front grille that seamlessly blends in with installation aesthetics while protecting the vital inner speaker components from environmental hazards.

Simple Connectivity

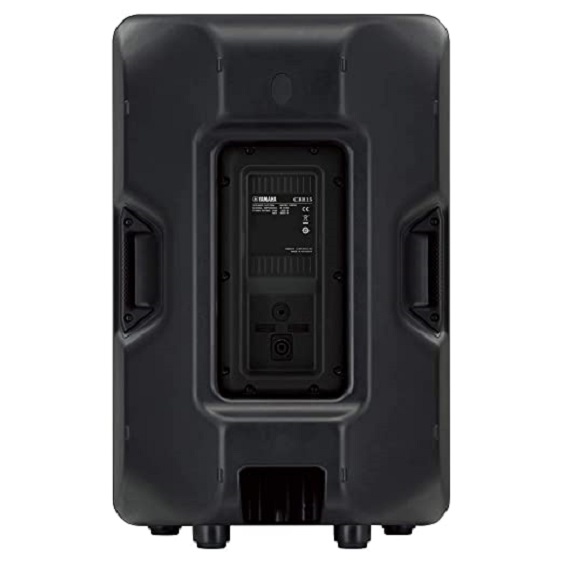

CBR Series speakers are equipped with one speakON jack and one 1/4″ Phone jack that allow for fast and easy connectivity in both personal and professional environments.

Smart Enclosure Design for Floor Monitoring

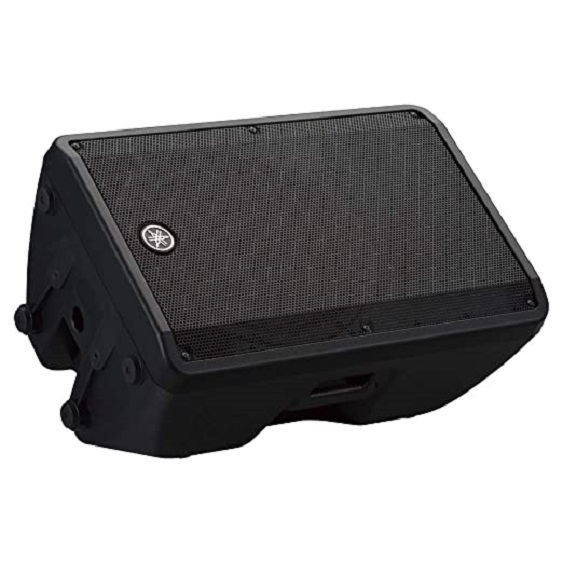

The CBR Series speakers feature an optimized 50° wedge angle for floor monitoring. In addition, the CBR12 and CBR15’s symmetrical shape allows for effortless configuration of a mirror-mode floor monitoring system for a larger and more defined sweet spot.

Rigging Points for Installation Applications

CBR loudspeakers come equipped with M8 rigging points, allowing for rigged applications with optional speaker brackets or standardized eye-bolts.

FEATURES

• Speaker type: 2-way Speaker, Bass-reflex Type

• Frequency range (-10dB): 46 Hz – 20 kHz

Nominal coverage

• H: 90°
• V: 60°

Components

• LF: 15″ Cone, 2.5″ Voice Coil (Ferrite Magnet)
• HF: 1.4″ Voice Coil, Compression Driver (Ferrite Magnet)

• Crossover: 2.0 kHz

Power rating

• NOISE: 250W
• PGM: 500W
• PEAK: 1000W

• Nominal impedance: 8Ω

• Sensitivity (1W; 1m on axis): 96dB SPL

• I/O connectors: 1/4″ Phone x 1, speakON NL4MP x 1

• Cabinet material: Plastic

• Finish: Black

• Handle: Side x 2

• Flying and mounting hardware: Bottom x 2, Rear x 1 (Fit for M8 x 15mm Eyebolts)

• Pole socket: Φ35 mm?Bottom x 1
