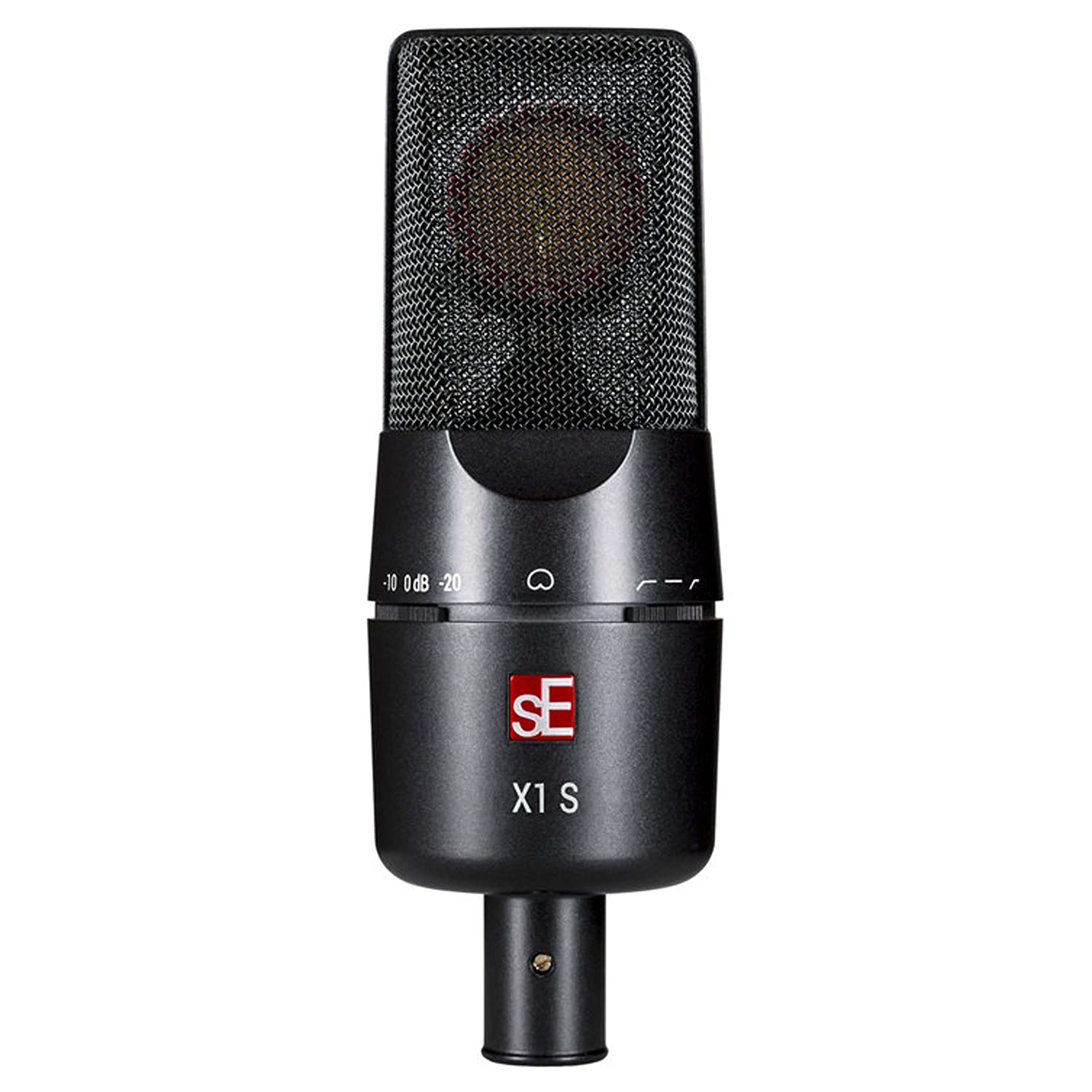

sE Electronics X1S Condenser Microphone

sE Electronics X1S Condenser Microphone Overview:

• Hand-made gold-sputtered true large diaphragm capsule
• State of the art SMT components for short signal path, highest dynamic range and maximum reliability
• Very smooth and balanced sound
• Two switchable attenuation pads
• Two switchable low cut filters

CUSTOM-DESIGNED, HAND-CRAFTED CAPSULE

Just like its predecessor, the X1 S utilizes a hand-made condenser capsule, meticulously constructed and tuned in sE’s capsule room by technicians with decades of experience…

This results in a capsule built like the world’s finest musical instruments – and a capsule truly up to the challenge of recording them.

HIGH PERFORMANCE ELECTRONICS

Where the original X1 was powerful, the redesigned electronics of the X1 S take its performance to a whole new level, giving it the highest dynamic range in its class.

Its internal redesign also allows for improved sensitivity, dramatically increased SPL handling (up to 160dB!), and a huge reduction in self-noise.

TWO SWITCHABLE ATTENUATION LEVELS

The -10 dB and -20 dB pad switches provide extended dynamic range, enabling a wide range of applications and close-mic techniques for even the loudest instruments…think super-heavy electric guitars, fortissimo brass instruments, and heavy-footed kick drums.

TWO SWITCHABLE LOW-CUT FILTERS

Selectable at either 80Hz or 160Hz, these two filters help eliminate low-frequency rumble or footfall noise, as well as help compensate for excessive bass (proximity effect) with close-mic techniques.

ALL-METAL HOUSING AND PREMIUM FINISH
Unlike the cheaply constructed bodies of some other “entry-level” microphones, the X1 S’s all-metal chassis provides efficient rejection of any electrical interference and noise – and the high-quality finish ensures a great look for years to come.

GOLD-PLATED XLR CONNECTOR
Ensures loss-free, reliable signal connection.

The X1 S also comes standard with a mic clip that will securely attach it to any mic stand.

Specifications:

• Capsule Type: Hand-Crafted 1″ True Condenser
• Polar Pattern: Cardioid
• Frequency range: 20 Hz – 20 kHz
• Sensitivity: 30 mV/Pa (-30.5 dBV)
• Max SPL: 140 / 150 / 160 dB (0/10/20 dB pad) (0.5% THD @ 1kHz)
• Equivalent noise level: 9 dB(A)
• Dynamic range: 131 / 141 / 151 dB (0/10/20 dB Attentuation pad)
• Signal to Noise Ratio: 85 dB
• Low-cut filter: 80 / 160 Hz, 6 dB/Oct, switchable
• Attenuation Pad: 10 / 20dB, switchable
• Powering: 48 Volts according to IEC 61938
• Electrical Impedance: 125 Ohms
• Recommended load impedance: >1k Ohms
• Current consumption: 6 mA
• Connectivity: 3-pin male XLR connector
• Dimensions: Diameter: 58mm (2.28 in), Length 169mm (6.65 in)
• Weight: 445 g (15.70 oz.)
