RME HDSPe Opto-X

₹37,140.00 Original price was: ₹37,140.00.₹33,100.00Current price is: ₹33,100.00.

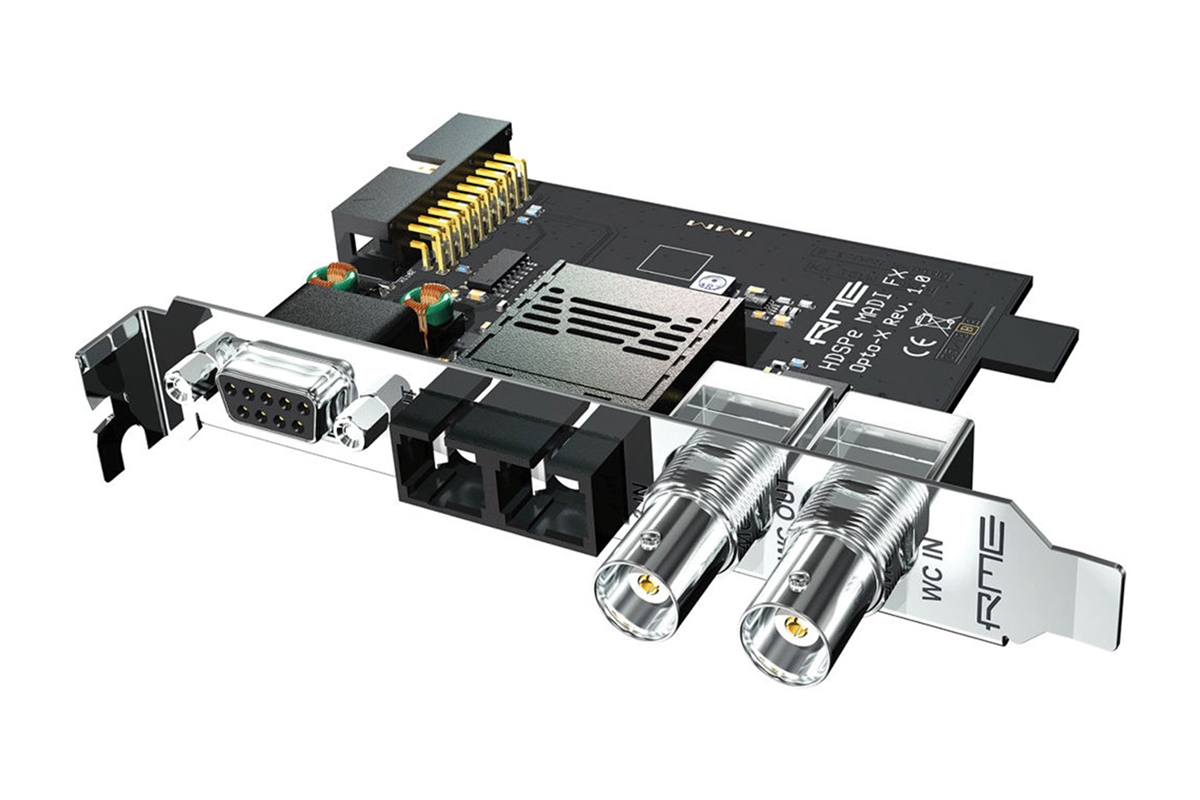

he RME OPTO-X Extension Board works with the HDSPe MADI FX Triple MADI Card with full functionality. This extension board adds more I/O ports to the internal cards of the HDSPe series. It comes with a Word Clock I/O and a D-sub connector for MIDI and AES I/O. The standard coaxial MADI I/O in this extension board is replaced by an optical MADI I/O. The MADI FX offers 3 optical MADI I/Os when used with the OPTO-X Extension Board.

5 Items sold in last 3 minutes
Compare
Add to wishlist
4 People watching this product now!
Categories: Audio interfaces/ Sound cards, Studio Gears
Share:
  • Description
  • Reviews (0)
Description
General
Compatible Interfaces
RME HDSPe Opto-X
Connectivity
Analog Audio I/O
1 x 1/4″ TRS Headphone Output
Digital Audio I/O
2 x SC-Plug Optical MADI Input
2 x SC-Plug Optical MADI Output
1 x BNC Coaxial MADI Input
1 x BNC Coaxial MADI Output
1 x XLR 3-Pin AES3 In or Out (on Included Breakout Cable)
Host Connection Protocol
PCIe
USB (Non-Host)
No
Sync I/O
1 x BNC Word Clock Input
1 x BNC Word Clock Output
Network I/O
No
MIDI I/O
1 x DIN 5-Pin Input or Output (on Breakout Cable)
Performance
Impedance
Headphone :
75 Ohms
Digital Audio
Sample Rates
44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz
Bit Depths
24-Bit
Sync Sources
Word Clock
Clocking
Word Clock:
Input Termination: 75 Ohms (Switchable)
Input Voltage: 1.2 V p-p
Output Voltage: 4 V p-p
Jitter: < 1 ns
