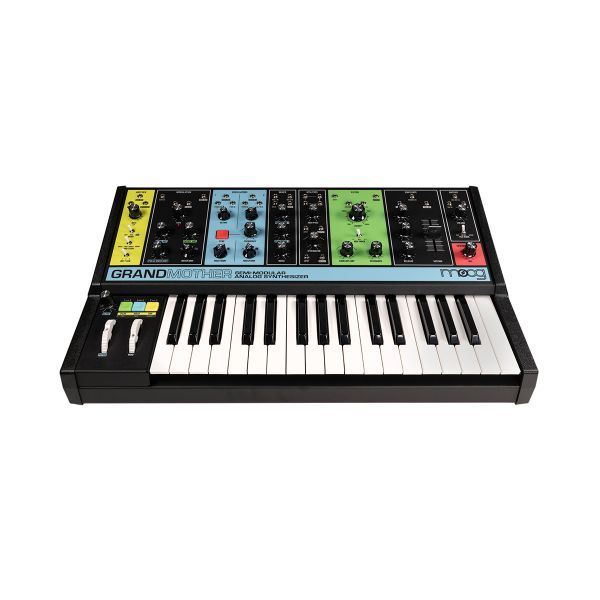

Moog Music Grandmother

A semi-modular analog synthesizer with a built-in arpeggiator, sequencer and spring reverb tank. Start playing immediately with “no patching required” then explore an infinite sonic playground with Grandmother’s endlessly reconfigurable front panel. Grandmother’s circuits, spring reverb, and spirit are inspired by the classic Moog Modular Synthesizers, making this instrument a powerful addition to a Mother-32, DFAM or Eurorack modular system.

Grandmother is a sonic playground that harkens back to Moog’s modular roots, where synthesis is not only about the end result, but the journey of discovery and experimentation. While capable of highly complex sounds and modulation, Grandmother’s semi-modular design requires absolutely no patching, ensuring that human beings of any skill-level can easily explore and experience the joys and magic of analog synthesis.

Inspired by the classic Moog modular synthesizers that came before it, Grandmother’s sound engine, modulation engine and onboard spring reverb tank are completely analog, resulting in an unrestricted sonic vocabulary of immeasurable beauty and power. In addition, Grandmother also features an easy to use Arpeggiator and Sequencer for added enjoyment and programmable syncopation.

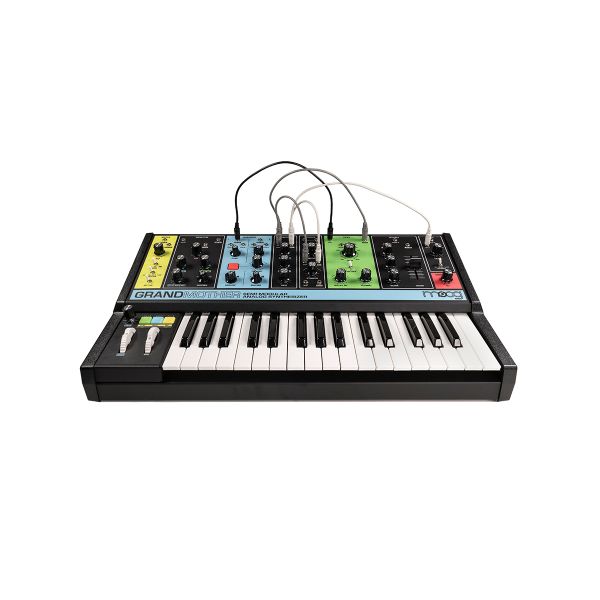

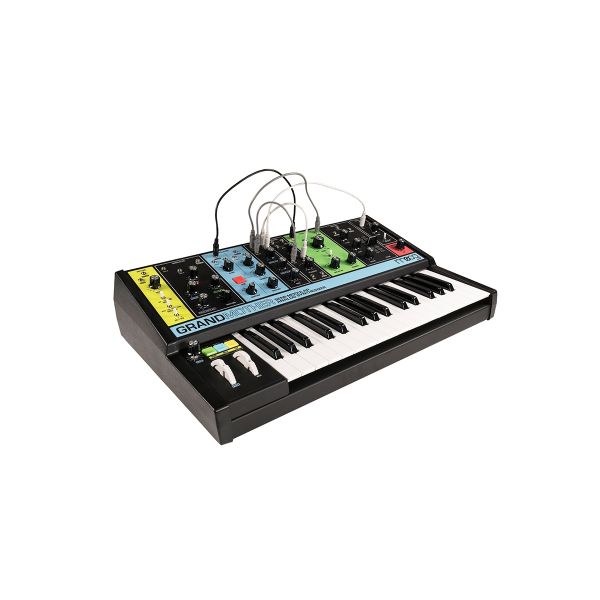

Though not required, creative patching and exploration are the keys to discovering exciting new relationships between modules and to truly unlocking Grandmother’s infinite expanse of auditory inspiration. Patching can also be used to override internal connections, allowing each section to function just as an independent module would.

In addition to its standalone function, Grandmother is also an ideal analog audio processor for external sound sources, and a powerful keyboard front end for expanding a Mother-32, DFAM or Eurorack modular system.

Features:

• Semi-modular monophonic analog synthesizer with 41 patch points
• 32-note, velocity-sensitive Fatar keybed
• Built-in spring reverb can process internal and external sounds
• Semi-modular design — no patching required, but ready to integrate with Eurorack
• All normalized connections can be interrupted, for complete modular integration
• Flexible arpeggiator/sequencer, with 3 preset locations for your favorite sequences (up to 256 notes each)
• 2 oscillators with triangle, saw, square, and pulse waveforms, with PWM and Linear FM inputs
• 4-pole, 10Hz-20kHz ladder filter
• 1-pole highpass filter
• Analog ADSR envelope generator, with dedicated fader for sustain-stage manipulation
• Analog LFO can reach audio rates
• MIDI connectivity via DIN MIDI in/out/thru and USB
• 41 patch points include 21 inputs, 16 outputs, and a parallel-wired 4-jack passive mult
• 1/4″ audio input for external signals

Specifications:

• Type: Semi-modular Synthesizer
• Analog/Digital: Analog
• Type of Keys: 32-key Fatar Keyboard, Velocity-sensitive Other Controllers: Mod Wheel, Pitchbend Wheel, Variable Glide
• Polyphony: Monophonic
• Oscillators: 2 x Analog VCO
• Effects Types: Spring Reverb
• Filter: -24dB/Octave 4-Pole Ladder filter , Variable Highpass Filter
• LFO: 1 x Analog LFO with Audio
• Arpeggiator: Yes
• Sequencer: 256 steps per sequence, store up to 3 sequences
• USB: 1 x Type B
• MIDI I/O: In/Out/Thru/USB

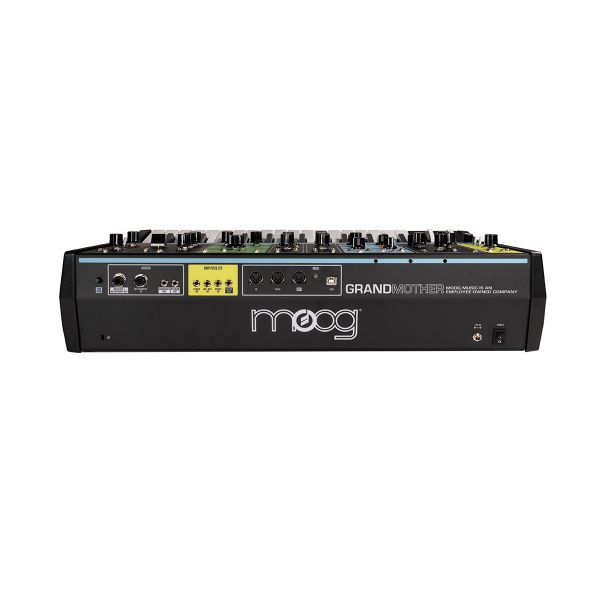

• Other I/O: Clock in, Clock out, Reset in, On/Off in, 41 x Patch Points
• Power Supply: 12V DC 2A power supply (included)
• Height: 5.5″
• Width: 23″
• Depth: 14.25″
• Weight: 16 lbs.
