USB Audio Interface for Computers, Tablets, and Smartphones
The iCON Pro Audio Duo22 Live USB 2.0 recording interface provides an audio input and output module as well as analog & digital connectivity with any Smart mobile device for live streaming applications.
The iCON Pro Audio Duo 22 Live is ideal for musicians, producers, and performers who want to incorporate a mobile device into their setup. Featuring simultaneous desktop and mobile connectivity, it enables you to stream audio from your computer directly to your mobile device.
Create the perfect recordings on your computer or mobile device with high-end analog-to-digital converters. High dynamic range ensures your performances are captured in the greatest of detail. Hook up a condenser or dynamic microphone, and a guitar or bass to lay down your ideas.
Connect speakers or headphones and use Direct Monitoring to hear yourself with zero latency while recording. Dual connectivity designed to enhance your mobile live streams, podcasts, or videos. From a one man show to a full live band, broadcast your mix at ultra low-latency directly to your mobile device.
Our ProDriver software lets you redirect audio from any source on your computer and hosts your favorite AU, VST, VST3 or Direct X plugins without a DAW. Save your plugin chains as presets and recall them during your session.
-
Pristine Audio: 2-in/2-out USB recording interface with premium converters for world-class 24-bit/192kHz recording and mixing with ultra-low latency
-
Live Streaming: simultaneous desktop and mobile connectivity enables you to live stream audio from the computer to a mobile device with analog (TRRS) and digital (USB-C) connections for any smartphone, adjustable onboard inputs level and monitoring
-
Compatibility: Fast USB 2.0 connection (bus-powered) is compatible with Mac and PC.
-
Virtual Plug-In Rack: iCON ProDriver software redirects audio from any source on the computer and enables hosting of AU, VST, VST3 or Direct X plugins without a DAW. Save plugin chains as presets and recall them during a session
-
Built To Last: Rugged aluminum construction
-
Bitwig Studio 8-Track DAW is also included
Main features include:
- 24-Bit 192KHz 1 mic-In/1 inst-In, 2-Out USB Recording Interface
- Professional & Hi-end grade DA/AD provides high dynamic range
- DAC: Dynamic Range: 114dB
- ADC: Dynamic Range: 114dB
- Supporting Mac/PC connectivity operating simultaneously with SmartDevice
- Live session possible with audio signal processing via ProDriver4 virtual plug-in rack
- 2×2 analog I/O full duplex recording and playback
- Compatible with iOS and Android Digital I/O jack (Type C) & Analog I/O jack (3.5mm stereo TRRS) for direct connection with SmartPhone
- Mic/Instrument preamps with individual gain control and phantom power switch
- 2 analog outputs on 1/4” TRS jacks or stereo output on 3.5mm phone connector

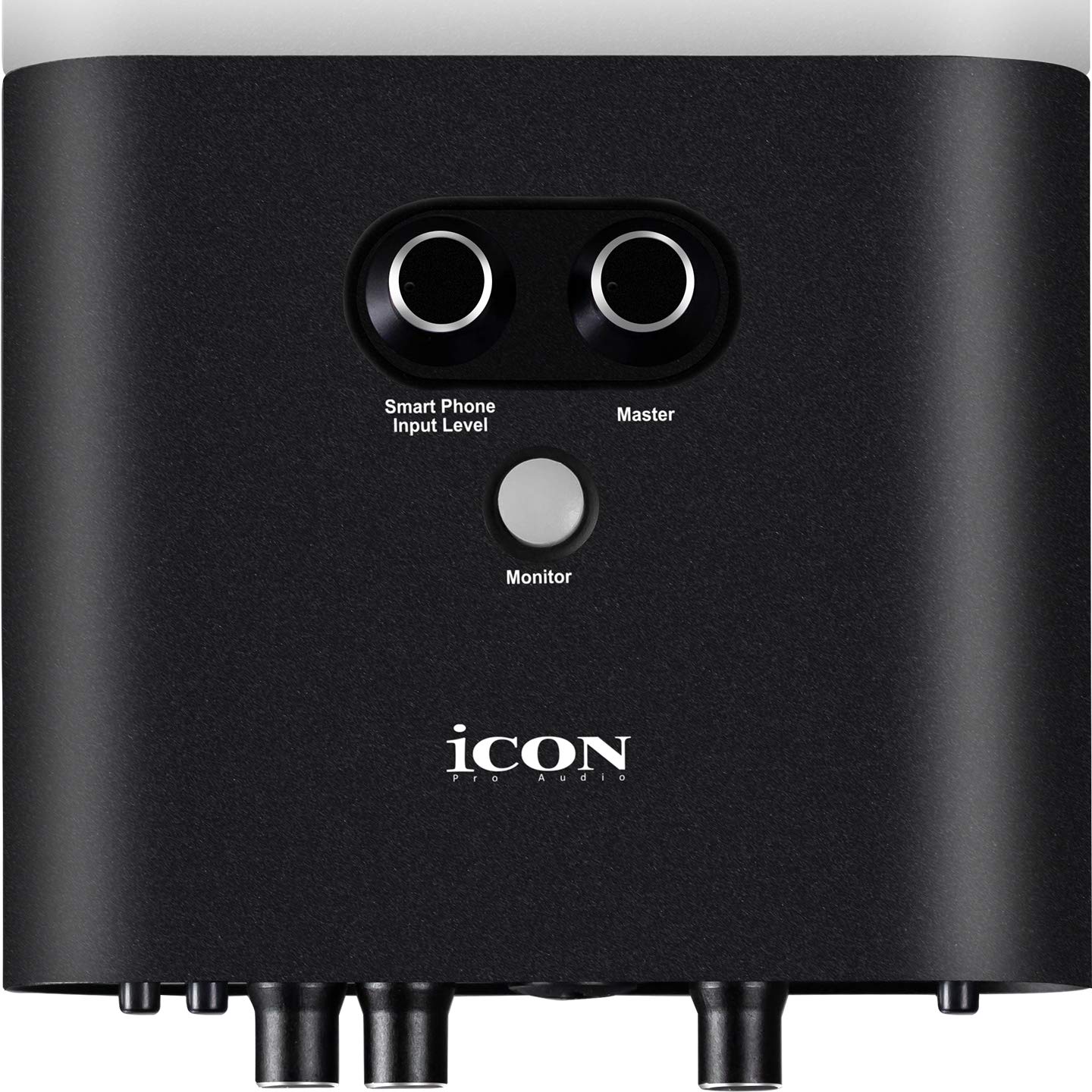

- Smart phone input level control on the top panel
- Direct monitor button control on the top panel
- 1 headphone output with assignable source and individual volume control
- Flexible channel routing via the ProDriver4 software control panel
- iCON Pro Audio developed ultra low latency ProDriver™ driver is provided
- iCON ProAudio innovative and user friendly plug-in hosting rack software is built-in with ProDriver™
- USB2.0 High Speed equipped and USB bus-powered
- Supports DirectSound, WDM and ASIO2.0
- Compatible with mac OS (Intel-Mac) 10.11 and later, iOS 9 or above, Andriod and Windows 7, 8 & 10 (32-bit/64-bit)
- Full duplex, simultaneous record/playback
- +5VDC power supply connector is equipped for external power supply when using with iOS
- Rugged aluminum construction
- Bitwig 8Track included
- Dotec audio plugins included
- Tracktion DAW Essentials Collection plugins included
- Kilohearts Toolbox plugins included
- Harrison 32c Vocal Intensity Processor plugin included
| Name | Spec |
| Mic Input: | |
| Frequency Response | 22Hz to 22kHz (+/-0.1dB) |
| Dynamic Range | 112dB, A-weighted |
| Signal-to-Noise Ratio | -112dB, A-weighted |
| THD+N | -98dB |
| Crosstalk | -97dB@1kHz |
| Input Impedance | Mic in: 1.8K Ohms, typical |
| Adjustable Gain | +34dB |
| Inst Input: | |
| Frequency Response | 22Hz to 22kHz (+/-0.1dB) |
| Dynamic Range | 112dB, A-weighted |
| Signal-to-Noise Ratio | -112dB, A-weighted |
| THD+N | -98dB |
| Crosstalk | -97dB @ 1kHz |
| Input Impedance | Inst in: 500K Ohms, typical; |
| Adjustable Gain | +31dB |
| Line Outputs 1/2 (Stereo, Unbanced): | |
| Frequency Response | 22Hz 22kHz (+/-0.1dB) |
| Dynamic Range | 114dB, A-weighted |
| Signal-to-Noise Ratio | -114dB, A-weighted |
| THD+N | -100 dB |
| Crosstalk | -97dB @ 1kHz |
| Nominal Output Level | Unbalanced: +4dBV, typical; |
| Maximum Output Level | +11dBV, typical; |
| Output Impedance | 150 Ohm |
| Load Impedance | 600 Ohm minimum |
| Headphone Outputs: (at Maximum Volume; Into 100 Ohm load): | |
| Frequency Response | 22Hz to 22kHz (+/-1dB) |
| Power into Ohms | 90 mW into 100 Ohms |
| THD+N | <0.06% (-66dB) |
| Signal-to-Noise Ratio | -100dB, A-weighted |
| Max Output Level into 100 Ohms | +2.0dBV, typical |
| Output Impedance | 75 Ohm |
| Load Impedance | 32 to 600 Ohms |
| Weight | 0.443 KG（0.98lb） |
| Dimensions | 131mmx127mmx40mm |
| Dimensions | 5.16″(L)x5″(W)x1.57″(H) |
