EVE Audio SC3070 studio monitor
Ultra-compact speaker with precise sound image for every studio
Compact and balanced powercube
The most important features at a glance
Frequency range
Woofer size
Max. SPL

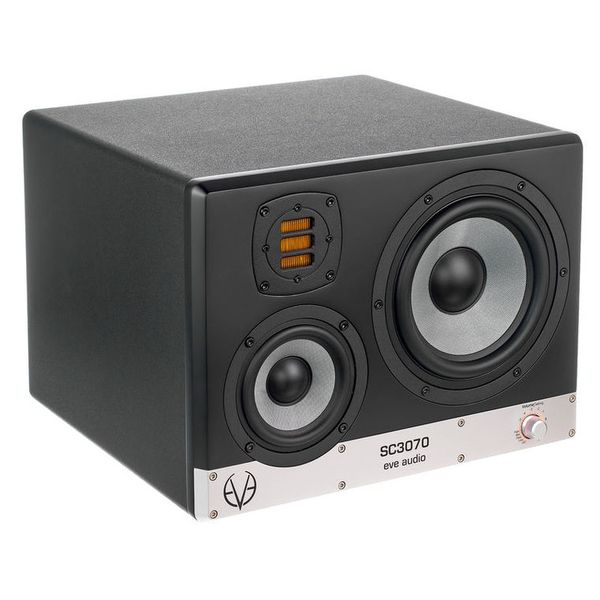

The SC3070
The SC3070 is a high-resolution, tri-amplified midfield monitor optimized for a precise midrange and powerful bass response, making it especially well-suited for applications where the complete skill set of a fully-fledged 3-way system is required, but where space is at a premium.
The active reference studio monitor expands the existing range of three-way speakers with a smaller version. This model achieves the outstanding mid-range reproduction of the mid-high section our TEC Award winning SC4070 is known for with exceptional balance and low distortion over the entire frequency range, but in a much more compact cabinet. The SC3070 is the ideal solution for recording, mastering and home studios.
More than just a speaker
Even if the focus is on the sound – our monitors offer a holistic solution that is well thought out from A to Z
SMART-knob
Simply set and save filters & volume.
Bass-reflex design
For precise bass reproduction without background noise.
Parameter lock
Your settings are saved (even without power).
Safe Fade-In
A slow volume increase when switching on protects ears and equipment.
Tech Talk
EVE Audio’s own Air Motion Transformer RS3.1 is combined with a specially designed 4″ midrange driver to give the SC3070 accurate and un-hyped transmission of high and mid frequencies without being tiring. A 7″ woofer driver rounds out the SC3070 by providing precise and powerful low frequencies.
The bass and mid-range drivers are the same SilverCone found in existing models from EVE Audio that have proven their worth in top studios all over the world. These drivers work with a low-distortion copper-cap magnet system, which significantly reduces the distortion factor. The fiberglass-coated membrane material is constructed in a stable honeycomb structure to guarantee true tonal reproduction.
Kohlekeller Studios
“They just tell you what the music sounds like. […] The bass response is amazing for a speaker of that size.”
In more than 20 years countless metal albums have been produced here in these studios.
DSP and SMART-knob
All EVE Audio monitors feature a high-resolution DSP electronics. A high-quality analog/digital converter from BurrBrown (24bit/192kHz) converts the analog input signal supplied via RCA or XLR. The DSP provides latency-free filtering while protecting tweeter and woofers against overload across the entire frequency range. When switched on, the volume of the monitor increases slowly to leave enough time to reduce the source volume if the input signal is too loud.
Adjustments to the acoustic environment can be made via the front rotary/pressure encoder, the SMART-knob with rotating LED ring. This knob allows the levelling of system volume as well as the adjustment of filters for room variables (low shelf, mid eq and high shelf filters). All settings are displayed on the LED ring, providing instant information about the selected values. The brightness of the LED ring can be adjusted for dark studios or video applications.

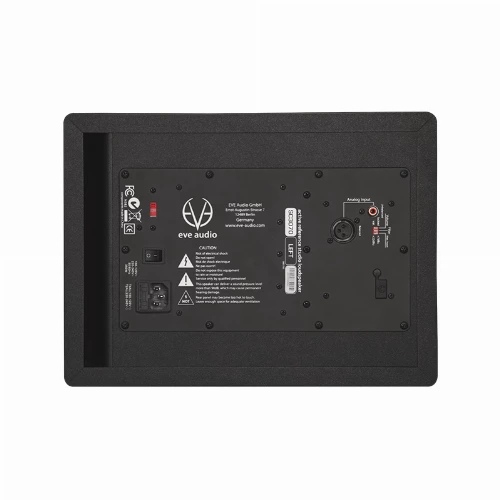

High-quality Class D amplifiers complete the system and deliver enough power to the demands of modern music production. Selected volume and/or filter settings can be independently fixed with DIP-switches that are positioned on the rear of the amplifier to prevent unauthorised or unintentional adjustments.
The Air Motion Transformer
Our tweeters base on the ribbon tweeter technology. We reinvented our own version of the A.M.T. which our speakers are well known for.
Technical Specs
All facts and figures in detail
340x250x310
Width x Hight x Depth in mm
35 Hz – 25 kHz
-3 dB at 1 m distance
120 dB
Max. SPL per pair
335 W
Output power per speaker
6,5″
Diameter
320 & 2800 Hz
Cross-over between drivers
