Audio-Technica MB/DK7 Midnight Blue Series Drum Kit Microphone Pack

Audio Technica MB/DK7 Midnight Blues Drumkit Microphone – Overview:

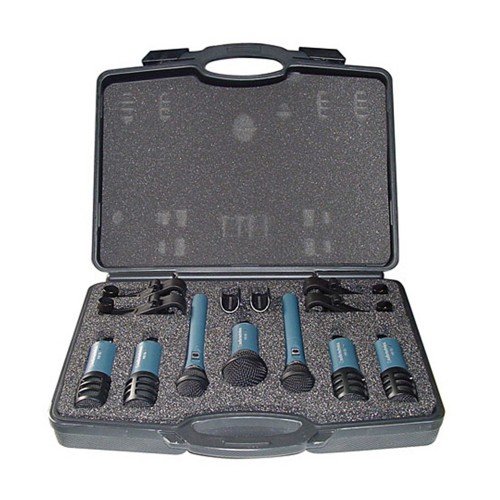

Audio Technica MB/DK7 Drum Pack includes a core selection of four microphones specifically engineered for drum applications, along with two MB 4k cardioid condenser microphones ideal for drum overhead miking. Also included in the package are three drum-rim microphone mounts and a durable carrying case. The four included MB 5k cardioid dynamic snare/tom microphones and one MB 6k cardioid dynamic kick microphone feature low-profile design for minimum visibility and versatile placement options around the drum kit. With a condenser design and extended frequency response perfect for overheads and hi-hat, the MB 4k features versatile battery/phantom operation, rugged all-metal construction, soft-touch finish, gold-plated XLRM-type connector, and an on/off switch. Its cardioid polar pattern minimizes feedback. High volumes come through without distortion; even subtle nuances are clean and precise

Includes:

• 4 x MB5k snare/tom microphones
• 1 x MB6k kick microphone
• 2 x MB4K Condenser Microphone

Features:

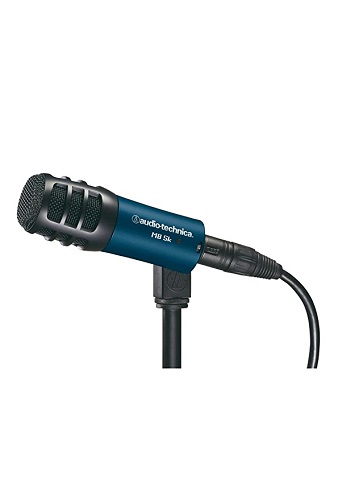

• MB 5k Cardioid Dynamic Snare/Tom Microphone (4 included)
• Custom-engineered for use on snare and toms
• Road-ready all-metal construction
• Low-profile percussion-style design
• Built-in adjustable stand mount
• MB 6k Cardioid Dynamic Kick Microphone (1 included)
• Custom-engineered for use on kick drum
• Rugged all-metal construction
• Low-profile percussion-style design
• Built-in adjustable stand mount
• MB 4K Condenser Microphone (2 included)
• Condenser design for studio-quality performance
• Extended response for smooth, natural sonic characteristics
• Rugged all-metal construction and on/off switch
• Soft-touch finish for durability and minimal mechanical noise
• Battery/phantom operation for maximum versatility

Specifications:

• SKU: MBDK7
• Frequency Response: MB 4k: 80-20,000 Hz MB 5k: 100-12,000 Hz MB 6k: 60-12,000 Hz
• Impedance: MB 4k (Phantom/Battery): 200 ohms/ 250 ohms MB 5k: 500 ohms MB 6k: 500 ohms
• Cable: Integral 3-pin XLRM-type
• Element: MB 4k: Condenser MB 5k: Dynamic MB 6k: Dyanmic
• Polar Pattern: Cardioid
• Open Circuit Sensitivity:

1. 1. MB 4k (Phantom/Battery): -46 dB (5.0 mV)/ -48 dB (3.9 mV) re 1V at 1 Pa
   2. MB 5k: -58 dB (1.2 mV) re 1V at 1 Pa MB 6k: -59 dB (1.1 mV) re 1V at 1 Pa

• Battery Type: MB 4k: 1.5V AA/UM3
• Battery Life: MB 4k: 0.4 mA/ 1200 hours typical
• Phantom Power Requirement: MB 4k: 11-52V DC, 2 mA typical
• Maximum Input Sound Level: MB 4k (Phantom/Battery): 137 dB SPL/ 125 dB SPL, 1 kHz at 1% T.H.D.
• Signal to Noise Ratio: MB 4k: 70 dB, 1 kHz at 1 Pa
• Switches: MB 4k: On/Off
• Dynamic Range: MB 4k (Phantom/Battery): 113 dB/ 101 dB, 1 kHz at Max SPL
