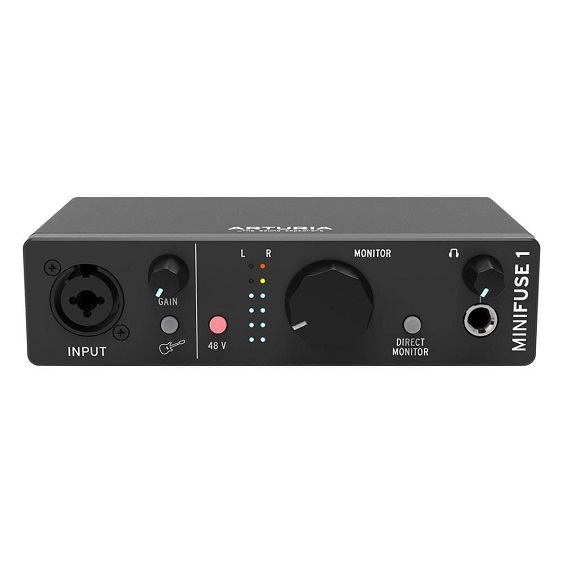

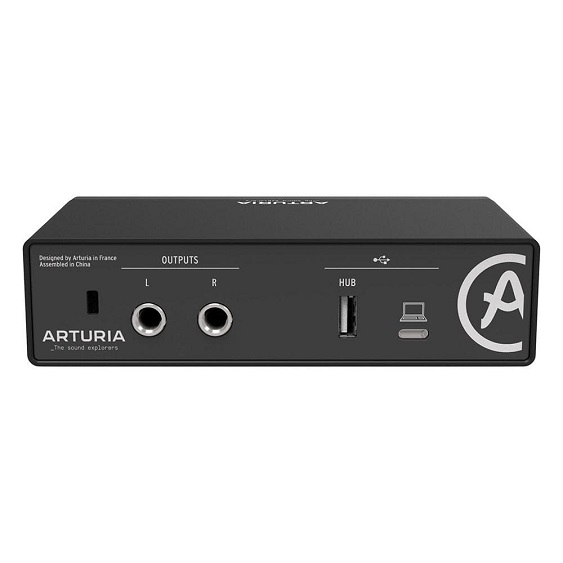

Arturia MiniFuse 1(Black) USB-2 Audio Interface

Features:

• Included Arturia instruments – 500 vintage & modern keyboard presets with Analog Lab Intro
• Arturia FX:
• Rev PLATE-140 reverb
• Pre 1973 vintage preamp
• Delay TAPE-201 echo
• Chorus JUN-6 analog chorus
• Ableton Live Lite – compose record produce anything
• Tutorials – Learn recording and music production with MiniFuse starting with the basics
• Exclusive content – Tips tricks and advice from industry experts
• Dedicated online portal – Access everything you need online in one place
• Subscriptions – Complimentary introductions to world-class audio & mixing services
• 1 x combo Mic/Inst/Line XLR Input with 48V phantom power
• 2 x 1/4″ TRS balanced line outputs with volume control
• 1 x stereo headphone output with volume control
• Direct Monitor switch
• 1 x USB2 type A hub (250mA max.)
• 1 x stereo virtual loopback channel
• USB-C interface compatible with PC and Mac fully USB 2.0 compatible
• Bus-powered

Specifications:

• Available Colors: Black/White
• Mic/instrument/line combo input: 1
• Additional line input
• Line outputs: 2
• Headphones  stereo output: 1 6.35mm
• “No latency” monitoring: Yes
• USB hub: 1 x USB2
• MIDI I/O: No
• Audio loopback ch.: Yes
• Power Supply: Bus Powered

Line Inputs

• Input impedance: 16k?
• Maximum input level: +22dBu
• Gain range: 56dB
• Frequency response 20Hz to 20kHz: +/-0.05dB (min gain)
• Dynamic range: 110dB typical (A-weighted)
• THD+N @ 1kHz: -100dB typical (un-weighted)

Speakers

• Output impedance: 94?
• Maximum output level: +12dBu
• Frequency response 20-20kHz: +/-0.09dB
• Dynamic range: 107.5dB typical (A-weighted)
• THD+N @ 1kHz: -101dB typical (un-weighted)

Instrument Input

• Input impedance: 1M? on Tip
• Maximum input level: +11.5dBu
• Gain range: 56dB
• Frequency response 20Hz to 20kHz: +/-0.06dB (min gain)
• Dynamic range: 110dB typical (A-weighted)
• THD+N @ 1kHz: -91dB typical (un-weighted)

Supported Sample rates

• 44.1kHz • 48kHz • 88.2 kHz
• 96kHz • 176.4kHz • 192 kHz

Microphone Preamps

• Input impedance: 2.5k?
• Maximum input level: +9dBu
• Gain range: 56dB
• Equivalent Input Noise (EIN): -129dB typical (A-weighted)
• Frequency response 20Hz to 20kHz: +/-0.06dB (min gain)
• Dynamic range: 110dB typical (A-weighted)
• THD+N @ 1kHz: -100dB typical (un-weighted)

Phones

• Output impedance: 10?
• Maximum output level: +11.4dBu
• Frequency response 20-20kHz: +/-0.09dB
• Dynamic range: 104dB typical (A-weighted)
• Power @ 33ohm: 137mW
