The JBL Passive Touring Sound Bundle features PA System, totally pre-configured and supplied with everything, from speakers, recommended amplification, digital crossover, and audio cables and connectors. This combination of speakers is enough to power concert or DJ applications for an indoor venue of upto 4000 sq.ft. and can easily handle audiences of upto 750 people for an outdoor setup. If you need more power, you can simply double the speakers and amplification. This bundle has been technically approved and recommended by Harman.

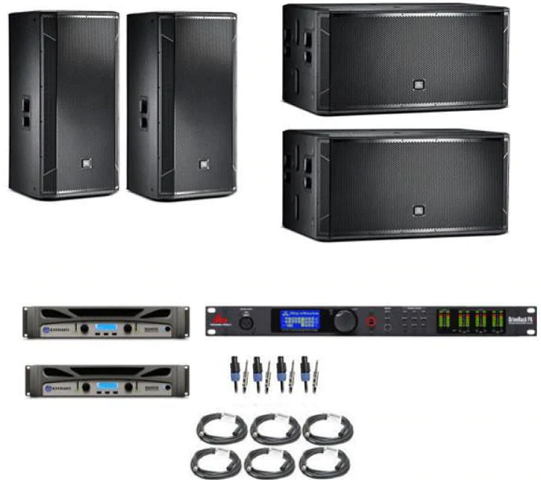

JBL Passive Touring Sound Bundle Includes:
- JBL STX825 – 2 nos
- JBL STX828S – 2 nos
- Crown XTI6002 Power Amplifier – 2 nos
- dBx Driverack PA2 Digital Speaker Management System/Crossover – 1 nos
- Bajaao Customized XLR-XLR Cables 6ft – 6 nos
- Bajaao Customized Speaker Cables 150ft – 4 nos.
JBL STX825 Dual 15″ 2-Way Bass Reflex PA Speaker:
A dual 15″ two-way speaker designed for maximum impact, portability and ease of use. With a wide frequency range and broad 90 degree by 50 degree coverage angles, this speaker is ideal for bands or DJ’s as their primary PA, use as a side-fill on a concert stage, or as an install speaker in a dance club or performance venue.
JBL STX825 Features:
- Compact and very high-power.
- Dual (15″) Vented Gap Cooling™ low-frequency drivers for very high acoustic output.
- 102 mm (4 in) voice-coil neodymium compression driver for high-power capacity and very light-weight
- 90°x 50° coverage.
- Bi-amplified or full-range passive operation.
- Twelve M10 suspension points may be used with optional M10 eyebolts.
- Rugged DuraFlex™ coated enclosures sized to be truck pack friendly.
- 14-Gauge steel grille lined with acoustically transparent cloth.
JBL STX825 Specifications:
- Frequency Range ( –10 dB): 34 Hz-20 kHz
- Frequency Response (± 3 dB): 42 Hz-19 kHz
- Coverage Pattern: 90˚ × 50˚ nominal
- Sensitivity (1W/1m): 98 dB
- Power Rating: 1600 W / 3200 W / 6400 W
- (Continuous/Program/Peak)
- Rated Maximum SPL: 136 dB SPL Peak
- Nominal Impedance: 4Ω
- Input Connectors: Two NL4
- Operational Modes: Full Range/Bi-Amp
- Dimensions (H x W x D): 1066 mm x 568 mm x 573 mm
- (42.0″ x 22.4″ x 22.6″)
- Net Weight: 51 kg (112 lbs)
JBL STX828S Dual 18″ Bass Reflex Subwoofer:
A dual 18″ high power subwoofer system in a front-loaded, vented enclosure designed for maximum low-frequency performance. The STX828 has an optional wheel kit. Two drivers give 2,000 watts of continuous pink noise power handling, 4kW program and 8 kW peak.
JBL STX828S Features:
- Dual 18 in. Super Vented Gap™ woofers for extended low frequency output.
- Dual 18 in. Super Vented Gap™ woofers for extended low frequency output.
- Rugged DuraFlex™ coated enclosures sized to be truck pack friendly.
- 14-Gauge steel grille lined with acoustically transparent cloth.
JBL STX828S Specifications:
- Frequency Range ( –10 dB): 32 Hz-250 Hz
- Frequency Response (± 3 dB): 37 Hz-120 Hz
- Sensitivity (1W/1m): 99 dB
- Power Rating: 2000 W / 4000 W / 8000 W
- (Continuous/Program/Peak)
- Rated Maximum SPL: 138 dB SPL Peak
- Nominal Impedance: 4Ω
- Input Connectors: Two NL4
- Operational Modes: Subwoofer
- Dimensions (H x W x D): 564 mm x 1137 mm x 714 mm
- (22.2″ x 44.8″ x 28.1″)
- Net Weight: 82 kg (180 lbs)
Crown XTi 6002 Power Amplifier:
There’s no debate – when you choose Crown’s XTi 2 Series, you’re choosing one of the most powerful and innovative amplifiers on the market today. That’s because the all-new XTi 2 Series amps continue to set the standard for unmatched performance and value, delivering the goods night after night without breaking a sweat.
Crown XTi 6002 Features:
- Peakx Plus™ Limiters provide the ultimate in system performance and protection by allowing full control over threshold, attack, and release
- Enhanced Subharmonic Synth section provides user control over frequency, gain and filter type for system-specific tuning
- 3 User-defined fan mode controls – normal, early and fullspeed – for matching fan performance to a specific application
- New system monitoring provides software visibility of AC line voltage and power supply temperature
- Integrated cast-aluminum handles for easy handling and enhanced durability
- Locking power cord clip provides a secure connection between the amplifier and power cord
- Updated HiQnet System Architect™ control software
- Increased number of presets to a total of 50; 49 of which are user definable
Crown XTi 6002 Specifications:
- Channels: 2
- Sensitivity: 1.4V
- Rated Power Output (per channel): 3000W 2Ω, 2100W 4Ω, 1200W 8Ω
- Signal to Noise Ratio (below rated 1 kHz power at 8 ohms): 103 dB (A-weighted)
- THD: < 0.5%
- Frequency Response (at 1W, 20 Hz – 20 kHz): + 0 dB, -1 dB
- Crosstalk (below rated power) 20 Hz to 1 kHz: >70 dB
- Dimensions: 3.5″ x 19″ x 16.2″
- Weight: 24 lbs (10.9 kg)
- Shipping Weight: 30 lbs (13.6 kg)
- IEC Power Connector: 20A
dbx DriveRack PA2:
The dbx Driverack is one of the most innovative and helpful tools to come along for the live sound engineer in decades. It incorporates crossover, EQ, compression, delay parameters and much more within individual presets. These presets can then be applied to specific rooms, expected environments and applications. The dbx Driverack PA2 incorporates heavily researched and well-considered improvements in the original Driverack system.
The DriveRack PA2 provides all the processing you need between your mixer and amplifiers to optimize and protect your loudspeakers. With the latest advancements in dbx’s proprietary AutoEQ and AFS algorithms, a new input delay module for delaying the FOH system to the backline, Ethernet control via an Android, iOS, Mac, or Windows device, and updated Wizards, the DriveRack PA2 continues the DriveRack legacy of great-sounding, powerful, and affordable loudspeaker management processors, for a whole new generation.
dbx DriveRack PA2 Features:
- All New Setup Wizard
- Streamlined AutoEQ™
- All New AFS™ (Advanced Feedback Suppression)
- Mobile Control (Android®, iOS®, Mac®, Windows®)
- dbx Compression
- Graphic EQ
- 8-Band Parametric EQ (adjusted when using the AutoEQ) Input
- Subharmonic Synthesis
- Crossover (supports full range, 2-way, and 3-way systems)
- 8-Band Parametric EQs (used for speaker tunings) Output
- dbx Limiting
- Driver Alignment Delays
dbx DriveRack PA2 Specifications:
- Input: (2) line inputs. (1) RTA Mic input
- Input Connectors: (2) Female XLR line inputs. (1) Female XLR RTA Mic input
- Input Type: Electronically balanced/RF filtered
- Input Impedance: >50 kohm
- A/D Converter: dbx Type IV™ Conversion System
- CMRR: > 45dB
- Mic Preamp Phantom Power: +15VDC (RTA)
- Mic Preamp Equivalent Input Noise (EIN): < -117dB, 22Hz-22kHz, 150 ohm (RTA)
- Output: (6) Line Outputs
- Output Connectors: Male XLR
- Output Type: Electronically balanced, RF filtered
- Output Impedance: 120 Ω
- Max Output: +20dBu
- A/D Dynamic Range: 112 dB A-weighted, 110 dB unweighted
- Type IV Dynamic Range: 123 dB with transient material, A-weighted, 22kHz BW; 121 dB with transient material, unweighted, 22kHz BW; 115 dB typical with program material, A-weighted, 22kHz BW
- Input Delay Length: 100ms
- Alignment Delay: 10ms per channel (60ms total)
- Sample Rate: 48kHz
- Dynamic Range: >110 dB A-weighted, >107dB unweighted
- THD+Noise: 0.003% typical at +4dBu, 1kHz, 0dB input gain
- Frequency Response: 20Hz – 20kHz, +/- 0.5dB
- Interchannel Crosstalk: < -110 dB, -120dB typical (input-to-output: < -100 dB)
- Operating Voltage: 100-120VAC 50/60 Hz – EU: 220-240 VAC 50/60 Hz
- Power Consumption: 22 W
- Unit Weight: 5.25 lbs. (2.4 kg)
- Shipping Weight: 6.75 lbs. (3.1 kg)
- Dimensions: 1.75” (H) x 5.75” (D) x 19” (W), 4.4cm (H) x 14.6cm (D) x 48.26cm (W)
- D/A Dynamic Range: 112 dB A-weighted, 110dB unweighted
